Product details
Features & Advantages
Technical parameters
The application caseTesting equipment:
| Deep learning algorithm | High expansibility | Custom quadratic algorithm development | Mass production big data analysis | Loading and unloading/movement mechanism | Modular calibration | Humanized man-machine interface | 3DDetection scheme |

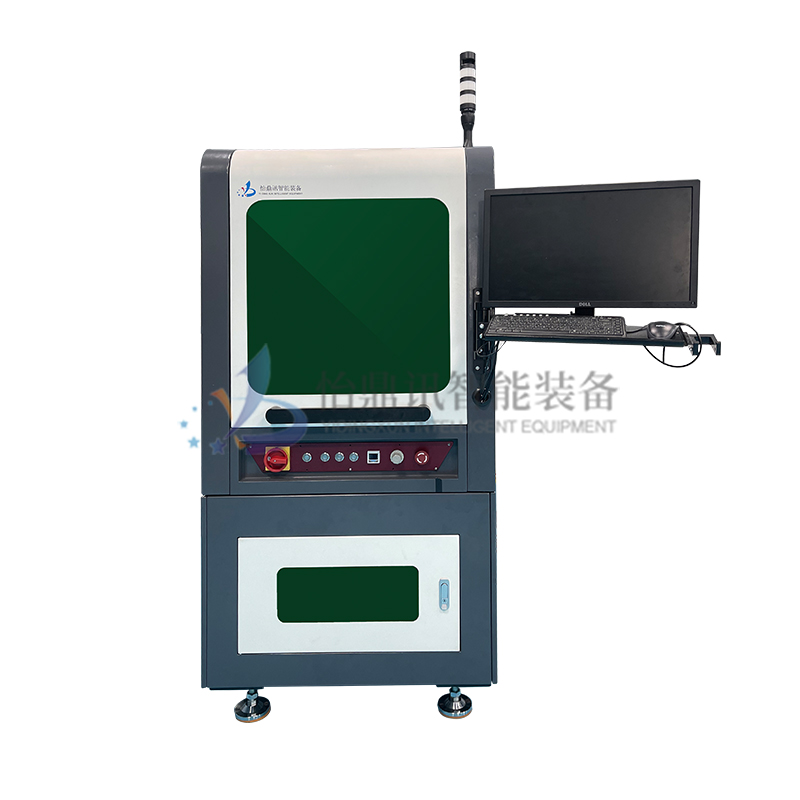

| model | YDX-MT-300 | |
| Device type | Frame structure | Floor type full AOI detection machine |
| Transmission equipment | Drive a | Servo motor/linear motor |
| Motor system | Repetitive positioning accuracy | X/Y：± 0.005mm Z：±0.01mm |
| Maximum speed of motion | X/Y：800mm/s Z：300mm/s | |
| Maximum acceleration | X/Y：1.2g Z：0.5g | |
| The visual system | The camera | 200W/500W/900W/1200W/1600W/2900WPixel resolution camera optional, dual telecentric lens |
| The light source | Customizable light source | |
| system | DX-InLineOptical detection software platform, professional HMI interface, measurement results and data analysis visualization, measurement tools can be configured | |
| 3Dsystem | 3D line confocal sensor system / 3D laser measurement system optional | |
| Data interaction | MES/ Shop Floor | |
| Equipment specification | Overall dimensions | 900mm×950mm×1700mm |
| Equipment weight | 450kg | |
| The power supply | 220V AV 50Hz | |
