Product details
Features & Advantages
Technical parameters
The application case| Six axis motion control system | Precision CCD guidance system | Customized laser light source module | High purity nitrogen production system | High precision altimeter system | Flexible and precise ball parting module | Variable optical path system | Visual monitoring system |
| Double station structure design | Precision guided | Welding high speed stability | "Zero" pressure non-contact welding | Real-time MES docking | Welding is stable without splashing | Low thermal effect | Visual programming is easy to learn |

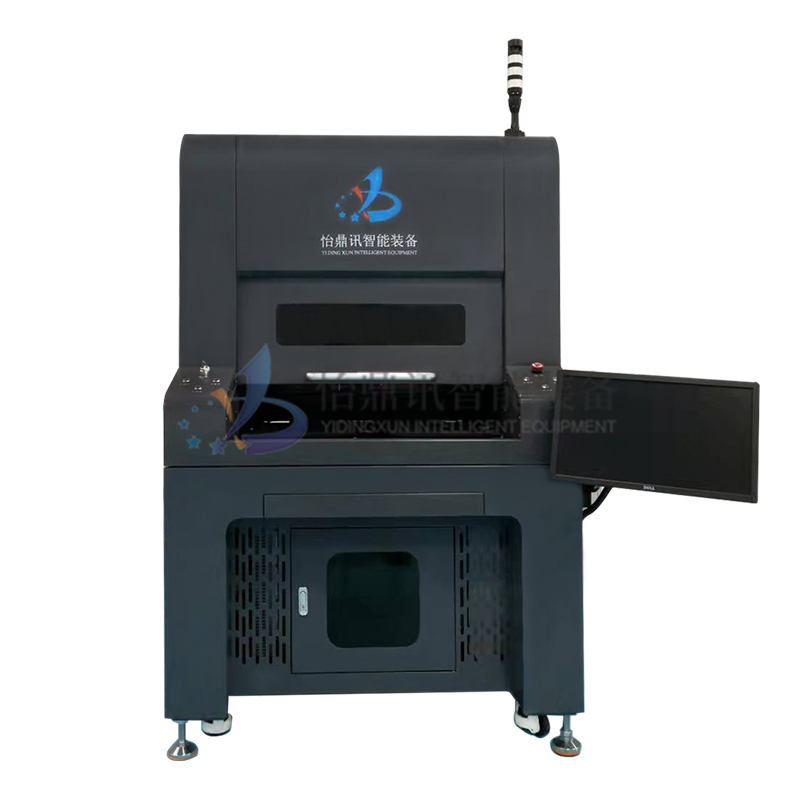

The system model | YDX-XQ-01-SZ |
The host weight | 1200Kg |
The power supply | AC220V，15A |
Laser type (optional) | Fiber/semiconductor lasers |
Laser power (optional) | 150/300W (optical fiber) 200W (semiconductor) |
The monitoring system | AOI：5Million Pixels |
Equipment size (l × W × H) | 1350mm×1450mm×2100mm |
Motion mechanism | Precision linear machine |
Welding scope | 450mm×500mm |
Repetitive positioning accuracy | ±0.005mm |
Maximum operating speed | 1500mm/s |
Z-axis platform stroke | 300mm |
X, y axis load | ≤25Kg |
The Z axis load | ≤15Kg |
